Filter made of corrugated cardboard and filter fleece

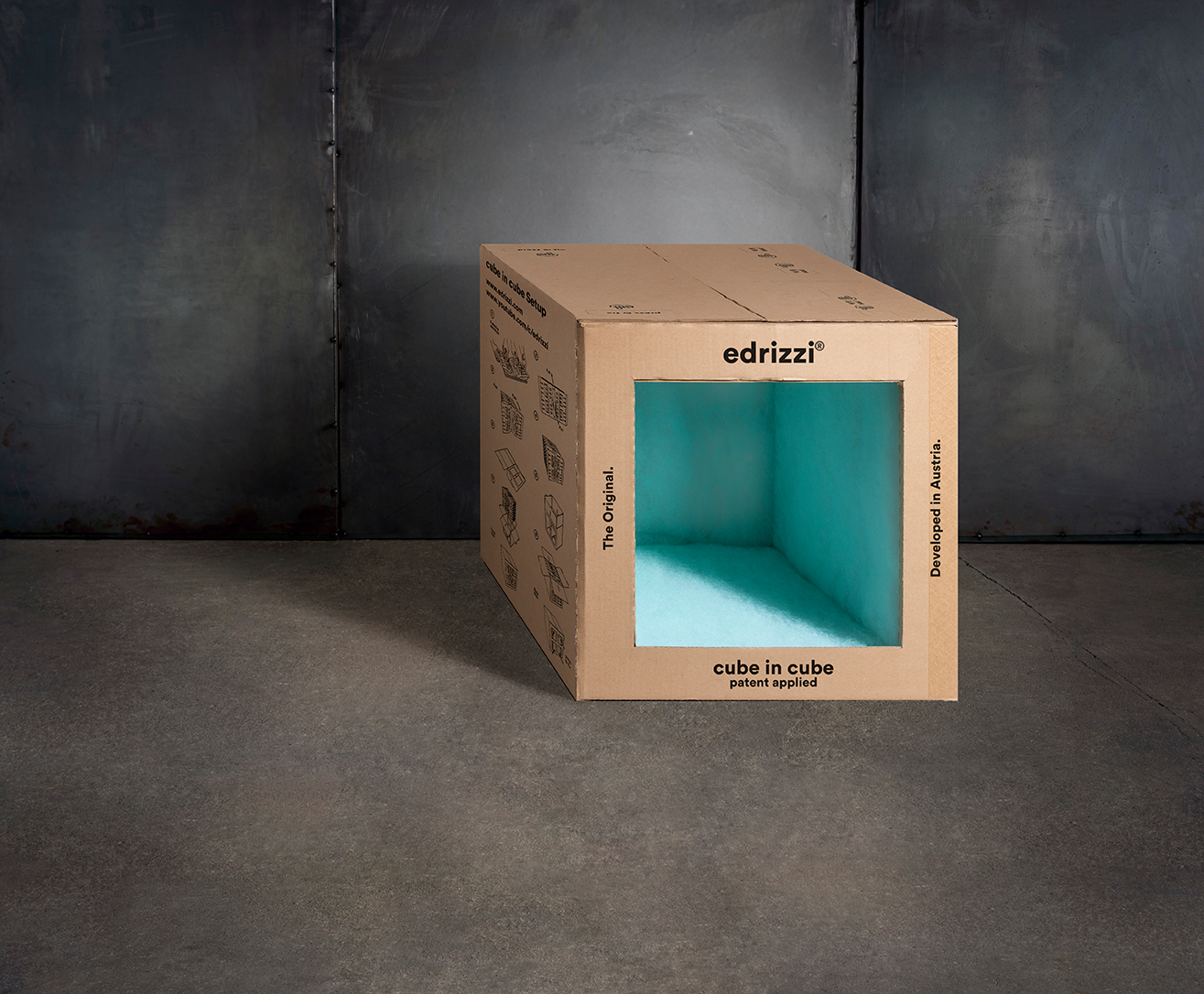

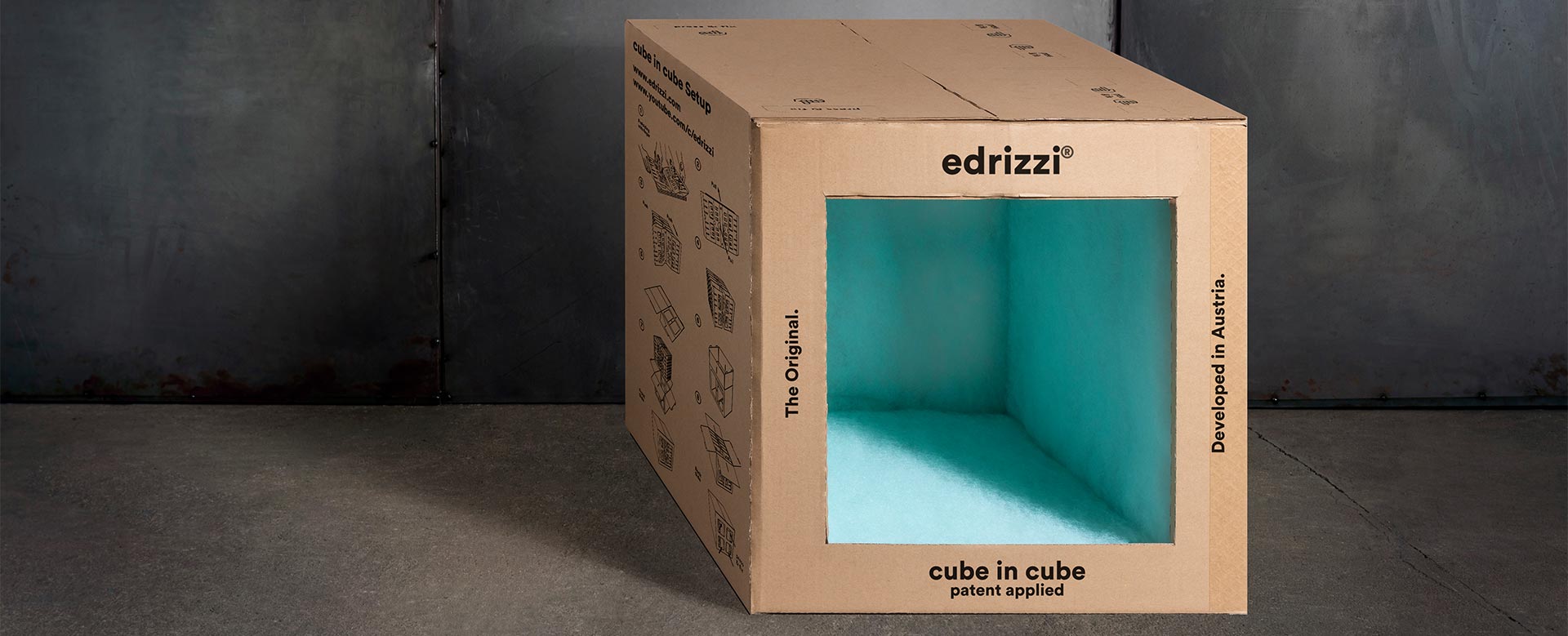

The cube-in-cube filter was specially developed for applications with quick-drying or dusty overspray. It impresses with a minimal initial pressure difference and is therefore particularly energy-efficient. It consists of a sturdy corrugated cardboard box with 0.85 m² of bonded naffi® filter fleece, reinforced by an outer cardboard box for the necessary stability. It is supplied flat and unassembled - this simplifies handling and optimises logistics.
The naffi® filter medium used was specially developed for industrial painting in the edrizzi® system and is made from 100% recycled polyester. As it is completely free of glass fibres, it can be handled without face masks, safety goggles or protective clothing. This latest edrizzi® system component can also be easily integrated into the edrizzi® modular system as usual.
- Cube in Cube 300
- Filter classISO Coarse 35 % (G2)
- Separation efficiencyup to 100 %
- Initial pressure difference 10 Pa (at 500 m3/h)
- Nominal volume flow 2000 - 3000 m3/m2/h
- Recommended flow velocity 0,25 - 2 m/s
- Storage conditionsRecommended: Temperature 15 – 25 °C, relative humidity 45 – 65 %
- Filter fleece naffi® 300 (100% polyester fibre)
- Filter area 0,45 m2
- Cube in Cube 500
- Filter class ISO Coarse 55 (G3)
- Separation efficiencyup to 100 %
- Initial pressure difference 10 Pa (at 500 m3/h)
- Nominal volume flow 2000 - 3000 m3/m2/h
- Recommended flow velocity 0,25 - 2 m/s
- Storage conditionsRecommended: Temperature 15 – 25 °C, relative humidity 45 – 65 %
- Filter fleecenaffi® 400 (100% polyester fibre)
- Filter area0,85 m2
