The support structure in the edrizzi® modular system

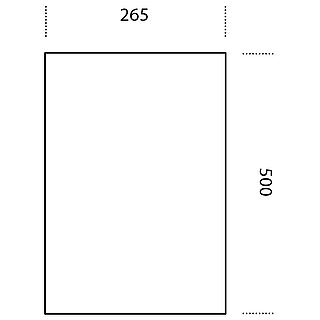

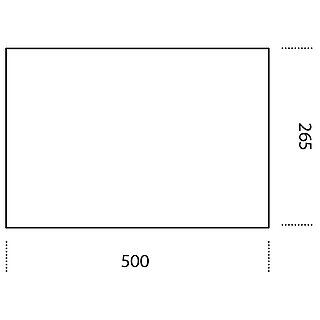

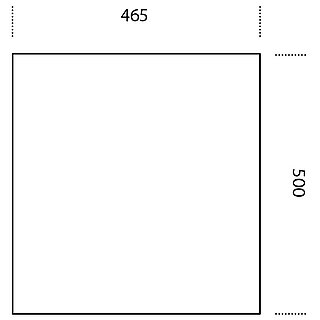

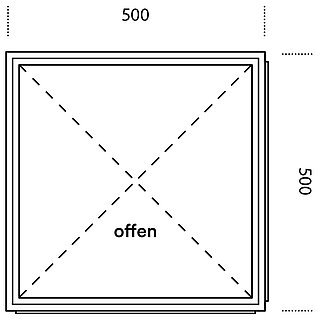

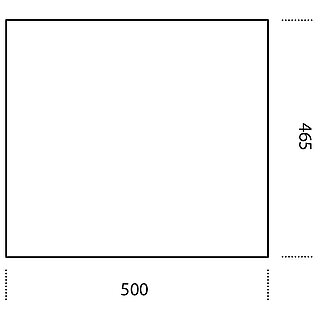

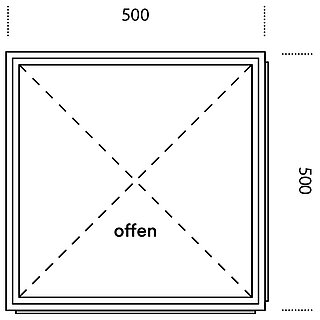

The edrizzi® E300 and E500 insert elements are the original support structures for the edrizzi® system. They can be combined quickly and easily in a modular system to form a dry separation system of any size according to the dimensional increments. The insert elements are important for the smooth installation and replacement of edrizzi® system components and are made of galvanized sheet steel or, on request, stainless steel.
The edrizzi® system can be installed horizontally, vertically, or in a combination of both in paint booths. The insert elements are available in several depths and allow for easy conversion of existing systems. The modular system allows for expansion and extension of the system at any time.
